Material and hardware direction
Side-wall-supported construction has no bottom support in the supplied description.
Specialty Restroom Partitions
Aero Series
Suspended Toilet Cubicles
A floating visual for contemporary restroom architecture.

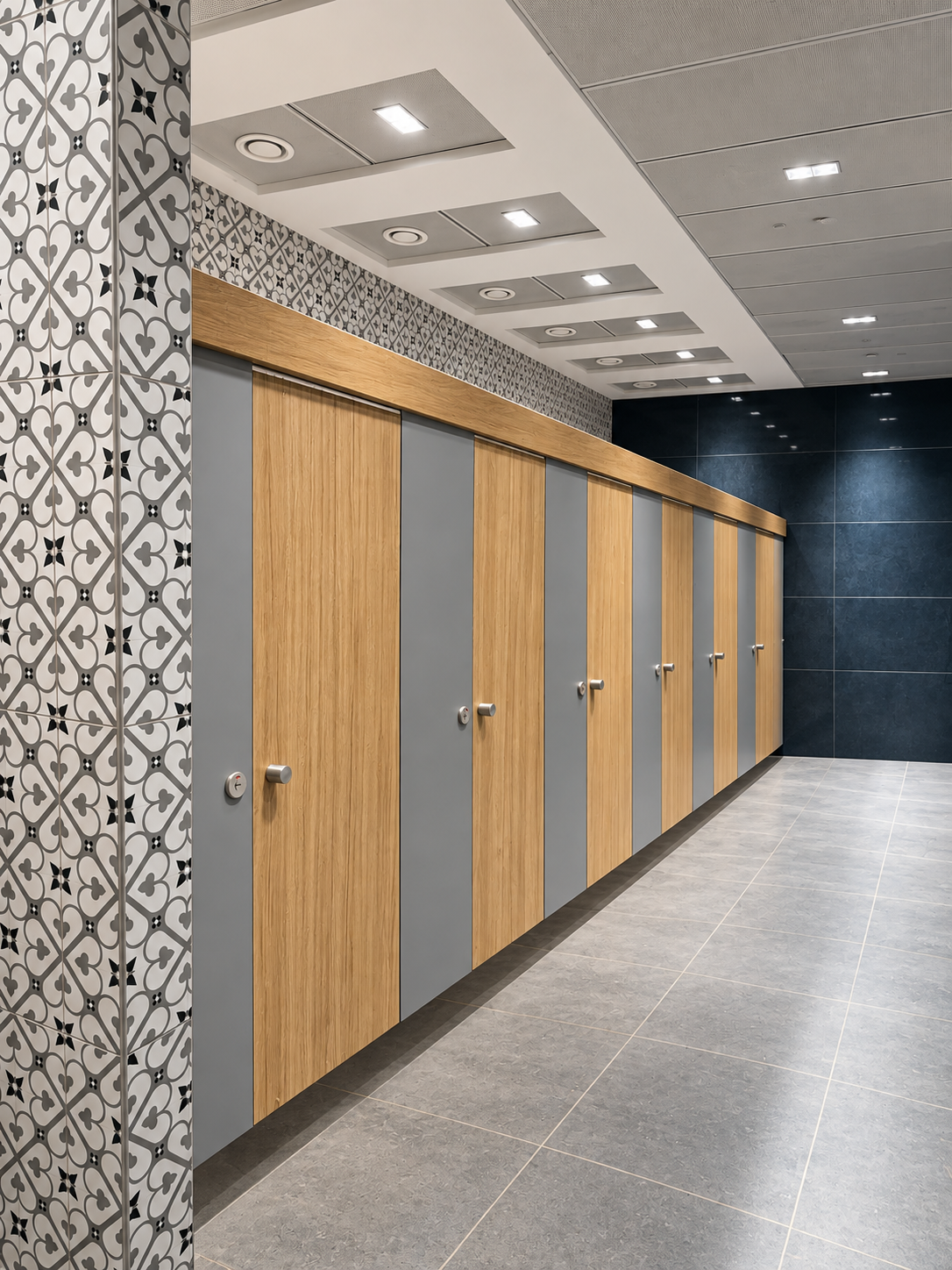

The Aero Series represents a new approach to toilet cubicle design, combining premium aesthetics with an innovative suspended construction. Supported between the side walls with no bottom support, the cubicles create a clean, floating visual that enhances the sense of openness within the restroom. The floor-free configuration also simplifies cleaning and maintenance, making it particularly suited to contemporary architectural environments. Designed with the needs of architects and interior designers in mind, the Aero Series brings together minimal detailing, structural elegance, hygiene, and long-term performance for premium commercial and institutional spaces.
Designed Around Your Project
For architect-led commercial, institutional and premium interior projects, the Aero Series Suspended gives project teams a clearly defined product option to evaluate. Evaluate Aero when side-wall conditions support the specified suspended configuration; structural suitability needs project-specific confirmation. Its supplied schedule helps architects, contractors and facility teams compare components and confirm the correct series for their intended restroom layout.
Architect-Led Projects
Commercial Interiors
Institutional Projects
Premium Interiors
Key Features
Design detail
An unobstructed floor beneath the cubicles can simplify access for cleaning.
Project planning advantage
Anodized aluminium U profile and 125 mm top rail form part of the hardware listing.
Hardware & Profile Specification
The following list reflects the component names and quantities in VISTARAA’s supplied series sheet. Items without quantities are marked as not specified; do not treat this as a complete bill of materials.
| Supplied Component | Quantity |
|---|---|
| SS - 304 Grade Thumbturn Indicator Lock | 1 no |
| SS - 304 Grade Gravity Hinges | 3 nos |
| SS - 304 Grade Doorknob | 1 no |
| SS - 304 Grade Coat Hook | 1 no |
| Aluminium Anodized U Profile | Not specified |
| Aluminium Anodized Top Rail - 125 mm | Not specified |
Standard Dimensions
Standard measurements shared for this particular product; validate all final dimensions and detailing for the approved project.
| Parameter | Supplied Dimension |
|---|---|
| Width | 1050 to 1200 mm |
| Depth | 1350 to 1500 mm |
| Height | 2050 mm |
| Door Width | 600 mm |
| Door Height | 1800 mm |
Where This Product Fits
Aero is best evaluated where a minimal, suspended visual is central to the project. Its side-wall-supported concept makes early coordination with the architect and project engineer essential; it is not a universal replacement for floor-supported cubicles.
Commercial
Institutional
Offices
Premium Interiors
Frequently Asked Questions
Does Aero need suitable supporting walls?
Yes. Its supplied description specifies side-wall-supported suspended construction. The site team should verify wall build-up, fixing strategy and structural suitability before confirming the design.
Are the listed sizes the final installed dimensions?
They are the standard measurements shown in the supplied VISTARAA sheet. Confirm final sizes, site conditions, door clearances and relevant project requirements with the VISTARAA team before approval.
Let's Specify the Right Solution
Share your project drawings, location, approximate number of units and preferred finish or detailing. Mention Aero Series Suspended Toilet Cubicles so the enquiry can be directed to the appropriate product discussion.
