Material and hardware direction
An anodized aluminium shoe-box element establishes the Boxup base detail.
Boxup Toilet Cubicles
Alu-SS Boxup Series
Toilet Cubicles
Boxup detailing with aluminium profiles and stainless-steel fittings.

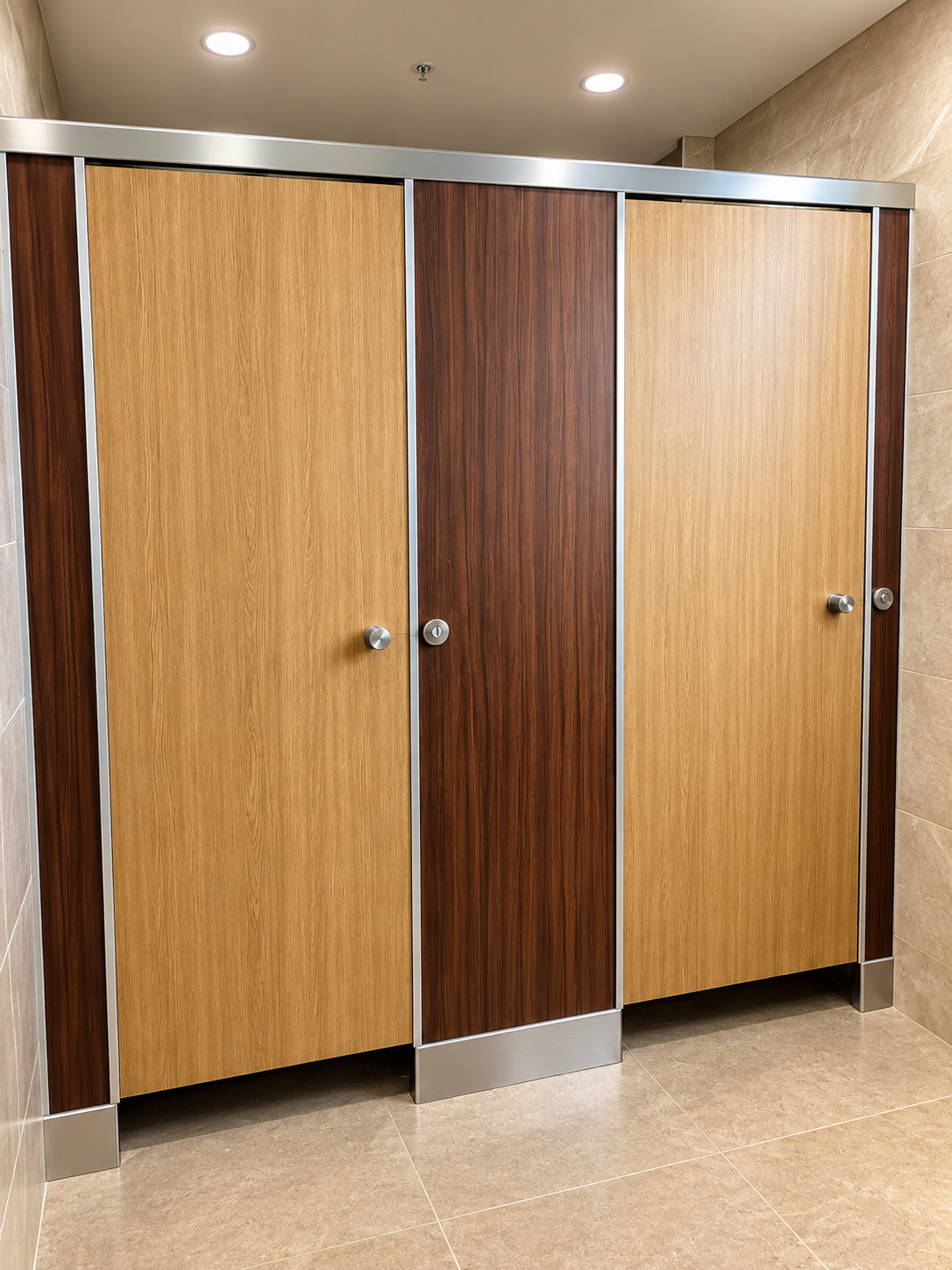

Our Alu - SS Boxup Series Toilet Cubicles are designed to provide a balanced combination of durability, functionality, and modern aesthetics. Ideal for commercial establishments, office spaces, institutions, and other professional environments, this series features a robust Boxup design that delivers reliable performance and easy maintenance. The Alu - SS Boxup Series is a versatile choice for projects looking for a contemporary restroom solution with lasting quality.
Designed Around Your Project
For commercial workplaces, institutional facilities and professional interiors, the Alu-SS Boxup Series gives project teams a clearly defined product option to evaluate. A fit for design briefs that favour Boxup construction alongside mixed aluminium and stainless-steel hardware. Its supplied schedule helps architects, contractors and facility teams compare components and confirm the correct series for their intended restroom layout.
Commercial Workplaces
Institutional Facilities
Professional Interiors
Commercial Projects
Key Features
Design detail
SS-304 operational fittings provide a consistent door-hardware specification.
Project planning advantage
Anodized aluminium profiles support a clean contemporary restroom design.
Alu-SS Boxup Series / Technical Details
Hardware & Profile Specification
The following list reflects the component names and quantities in VISTARAA's supplied series sheet. Items without quantities are marked as not specified; do not treat this as a complete bill of materials.
| Supplied Component | Quantity |
|---|---|
| SS - 304 Grade Thumbturn Indicator Lock | 1 no |
| SS - 304 Grade Gravity Hinges | 3 nos |
| SS - 304 Grade Doorknob | 1 no |
| SS - 304 Grade Coat Hook | 1 no |
| Aluminium Anodized Shoe Box | Not specified |
| Aluminium Anodized U Profile | Not specified |
| Aluminium Anodized H Profile | Not specified |
| Aluminium Anodized F Profile | Not specified |
| Aluminium Anodized Top rail | Not specified |
Standard Dimensions
Standard measurements shared for this particular product; validate all final dimensions and detailing for the approved project.
| Parameter | Supplied Dimension |
|---|---|
| Width | 900 to 1050 mm |
| Depth | 1350 to 1500 mm |
| Height | 1930 mm |
| Door Width | 600 mm |
| Door Height | 1800 mm |
Dimensional Reference
Indicative Alu-SS Boxup Series cubicle configuration showing the supplied standard measurements.
Width
900–1050 mm
Depth
1350–1500 mm
Overall Height
1930 mm
Door Width
600 mm
Door Height
1800 mm
Illustrative dimensional reference only. Not to scale or intended for fabrication. Confirm Boxup detailing and all final measurements against approved project drawings.
Where This Product Fits
Consider this Boxup configuration for commercial workplaces, institutional facilities and professional interiors. Compare the base detailing with the corresponding regular series before finalising the schedule, particularly where floor junctions and partition detailing are important to the architect.
Commercial
Workplaces
Institutions
Offices
Professional
Interiors
Frequently Asked Questions
What distinguishes Boxup from the regular series?
The Boxup schedule specifies a shoe-box base detail instead of the adjustable legs shown in comparable regular series. Confirm detail drawings and installation conditions before specifying.
Are the listed sizes the final installed dimensions?
They are the standard measurements shown in the supplied VISTARAA sheet. Confirm final sizes, site conditions, door clearances and relevant project requirements with the VISTARAA team before approval.
Let's Specify the
Right Solution
Share your project drawings, location, approximate number of units and preferred finish or detailing. Mention Alu-SS Boxup Series Toilet Cubicles so the enquiry can be directed to the appropriate product discussion.
