Material and hardware direction
An SS-316 shoebox plate identifies the base configuration.
Boxup Toilet Cubicles
Pure SS Boxup Series
Toilet Cubicles
Stainless-steel specification, distinctive Boxup profile.

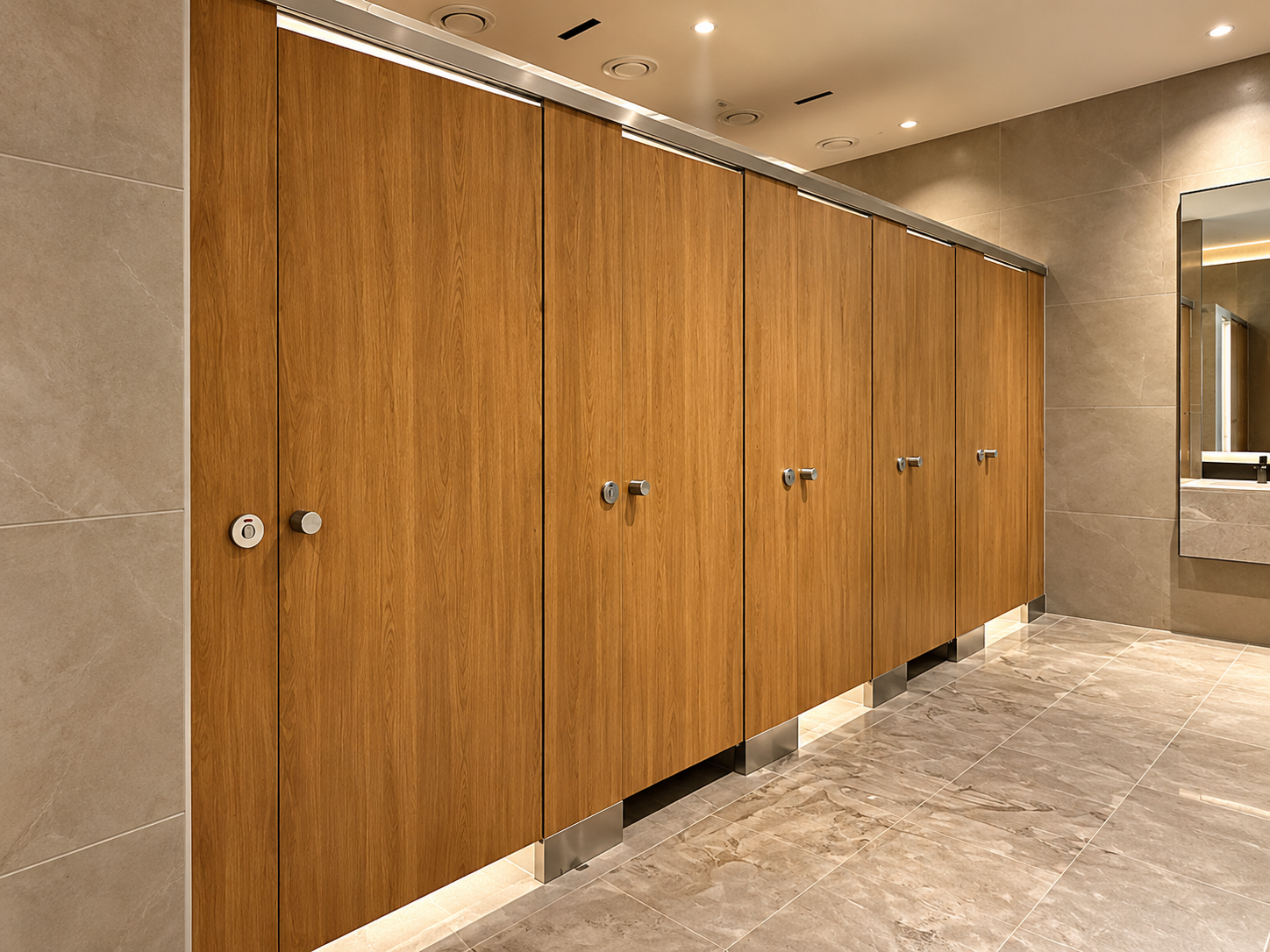

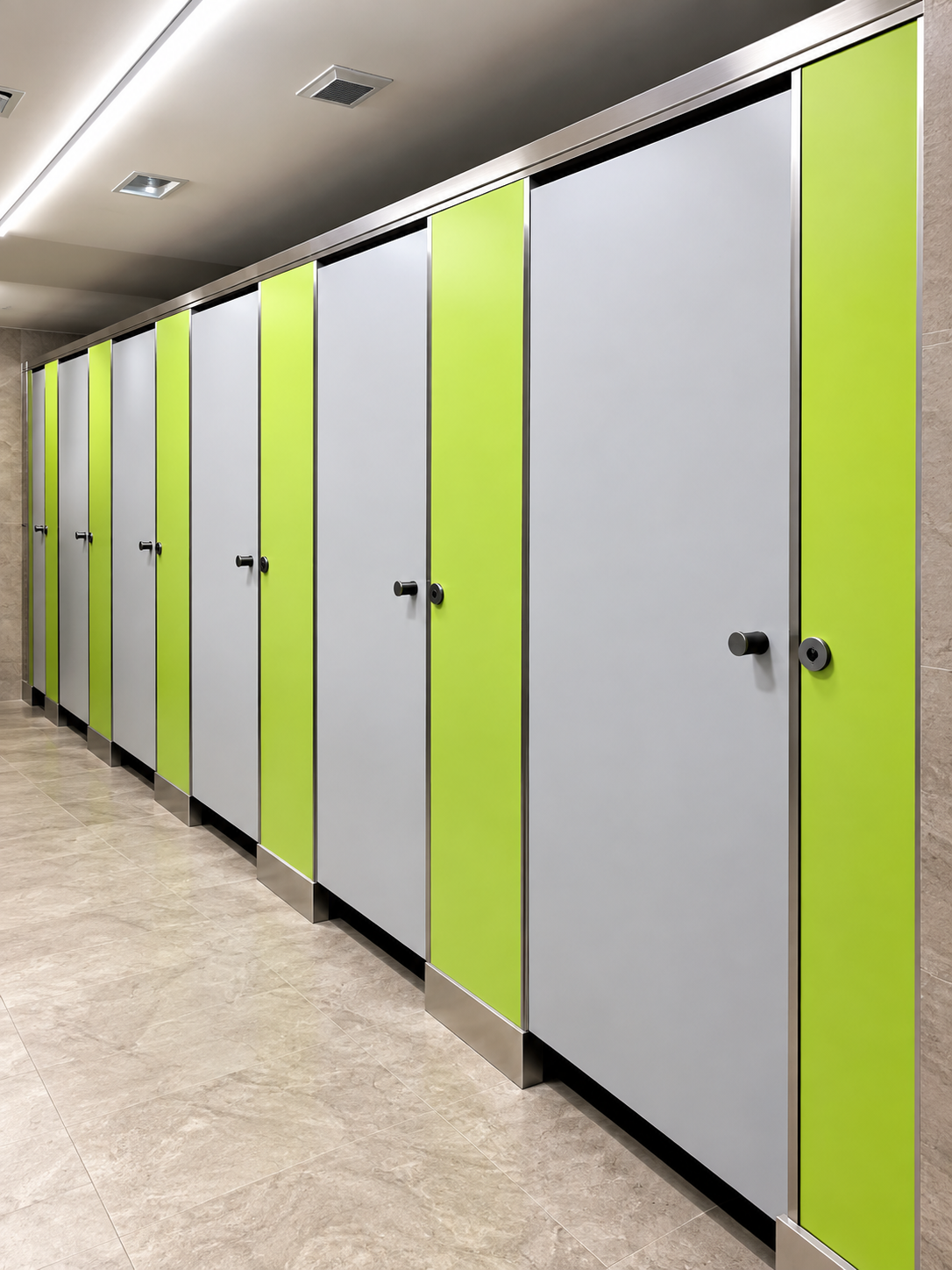

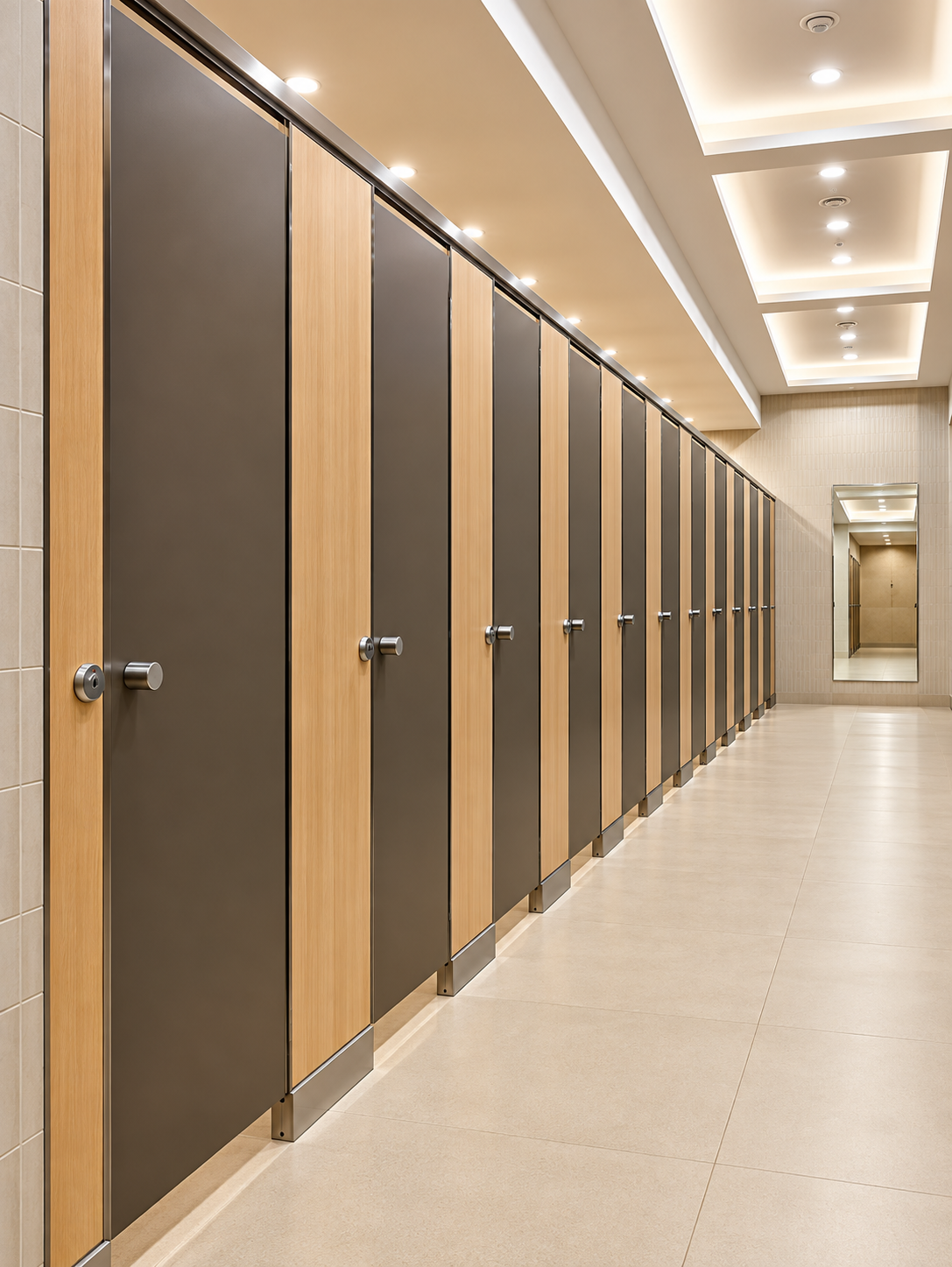

Our Pure SS Boxup Series Toilet Cubicles are a premium solution designed for spaces that demand superior durability, refined aesthetics, and high-quality construction. Featuring a robust stainless-steel Boxup design, this series is ideal for premium commercial spaces, high-end offices, malls, pharmaceutical facilities, and other prestigious environments. Combining strength, hygiene, easy maintenance, and sophisticated design, the Pure SS Boxup Series delivers a high-performance restroom solution built for demanding applications.
Designed Around Your Project
For premium commercial projects, offices, malls and pharmaceutical facilities, the Pure SS Boxup Series gives project teams a clearly defined product option to evaluate. Specify this series when both a Boxup base detail and stainless-steel profile package are central to the design. Its supplied schedule helps architects, contractors and facility teams compare components and confirm the correct series for their intended restroom layout.
Premium Commercial Projects
Offices
Shopping Malls
Pharmaceutical Facilities
Key Features
Design detail
SS-304 profiles and door fittings create a material-consistent specification.
Project planning advantage
A strong visual fit for restroom designs that prioritise stainless-steel detailing.
Pure SS Boxup Series / Technical Details
Hardware & Profile Specification
The following list reflects the component names and quantities in VISTARAA's supplied series sheet. Items without quantities are marked as not specified; do not treat this as a complete bill of materials.
| Supplied Component | Quantity |
|---|---|
| SS - 304 Grade Thumbturn Indicator Lock | 1 no |
| SS - 304 Grade Gravity Hinges | 3 nos |
| SS - 304 Grade Doorknob | 1 no |
| SS - 304 Grade Coat Hook | 1 no |
| SS - 316 Shoebox Plate | Not specified |
| SS - 304 U Profile | Not specified |
| SS - 304 H Profile | Not specified |
| SS - 304 F Profile | Not specified |
| SS - 304 Top rail | Not specified |
Standard Dimensions
Standard measurements shared for this particular product; validate all final dimensions and detailing for the approved project.
| Parameter | Supplied Dimension |
|---|---|
| Width | 900 to 1050 mm |
| Depth | 1350 to 1500 mm |
| Height | 1830 mm |
| Door Width | 600 mm |
| Door Height | 1800 mm |
Dimensional Reference
Indicative Pure SS Boxup Series cubicle configuration showing the supplied standard measurements.
Width
900–1050 mm
Depth
1350–1500 mm
Overall Height
1830 mm
Door Width
600 mm
Door Height
1800 mm
Illustrative dimensional reference only. Not to scale or intended for fabrication. Base detailing and final measurements must be confirmed against approved project drawings.
Where This Product Fits
Consider this Boxup configuration for premium commercial projects, offices, malls and pharmaceutical facilities. Compare the base detailing with the corresponding regular series before finalising the schedule, particularly where floor junctions and partition detailing are important to the architect.
Commercial
Offices
Malls
Pharmaceutical
Frequently Asked Questions
What distinguishes Boxup from the regular series?
The Boxup schedule specifies a shoe-box base detail instead of the adjustable legs shown in comparable regular series. Confirm detail drawings and installation conditions before specifying.
Are the listed sizes the final installed dimensions?
They are the standard measurements shown in the supplied VISTARAA sheet. Confirm final sizes, site conditions, door clearances and relevant project requirements with the VISTARAA team before approval.
Let's Specify the
Right Solution
Share your project drawings, location, approximate number of units and preferred finish or detailing. Mention Pure SS Boxup Series Toilet Cubicles so the enquiry can be directed to the appropriate product discussion.
